Applications
Constructed from high-quality synthetic materials, Cintropur filters are perfectly suitable for food fluids and drinking water. The filter’s propeller generates a centrifugal force in the water flow that precipitates heavy particles to the bottom of the vessel, while the fabric filters according to the chosen micron rating. TE versions can be filled with activated carbon, polyphosphates, or other granular products to eliminate unpleasant tastes or odors from the water.
Series

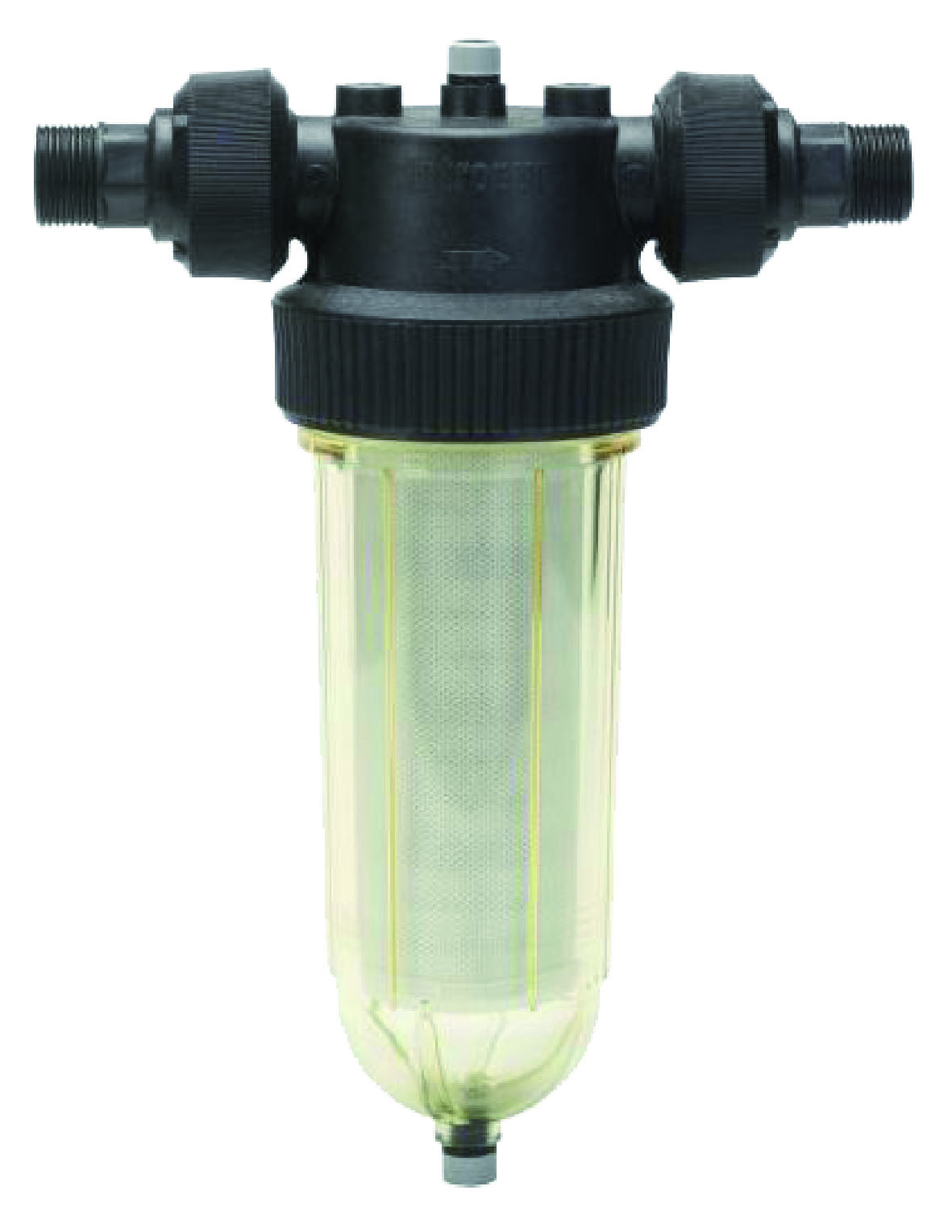

NW
Characteristics
– Head: Polypropylene reinforced with fiberglass.
– Vessel: Transparent and impact-resistant styrene.
– Propeller and cover: Polypropylene.
– Filter fabrics: Non-woven polyester fibers / Washable nylon.
– Service pressure [bar]: 10.
– Max working pressure [bar]: 16.
– Max fluid temperature [°C]: 50.
– Original filter fabric: 25 microns.
