Applications
The multistage centrifugal pumps of the ML series are suitable for use in water supply installations, high-pressure lifting, cooling, heating, irrigation, washing, boiler feed systems, condensate extraction, and fire-fighting installations.
Series
Series
MLH / MLV / TM / TMB / TMV
Characteristics
Adjustable packing gland shaft seal, with an alternative of unbalanced or balanced mechanical seal depending on the operating pressure.
The pumped liquid must be chemically and mechanically suitable for the materials used.

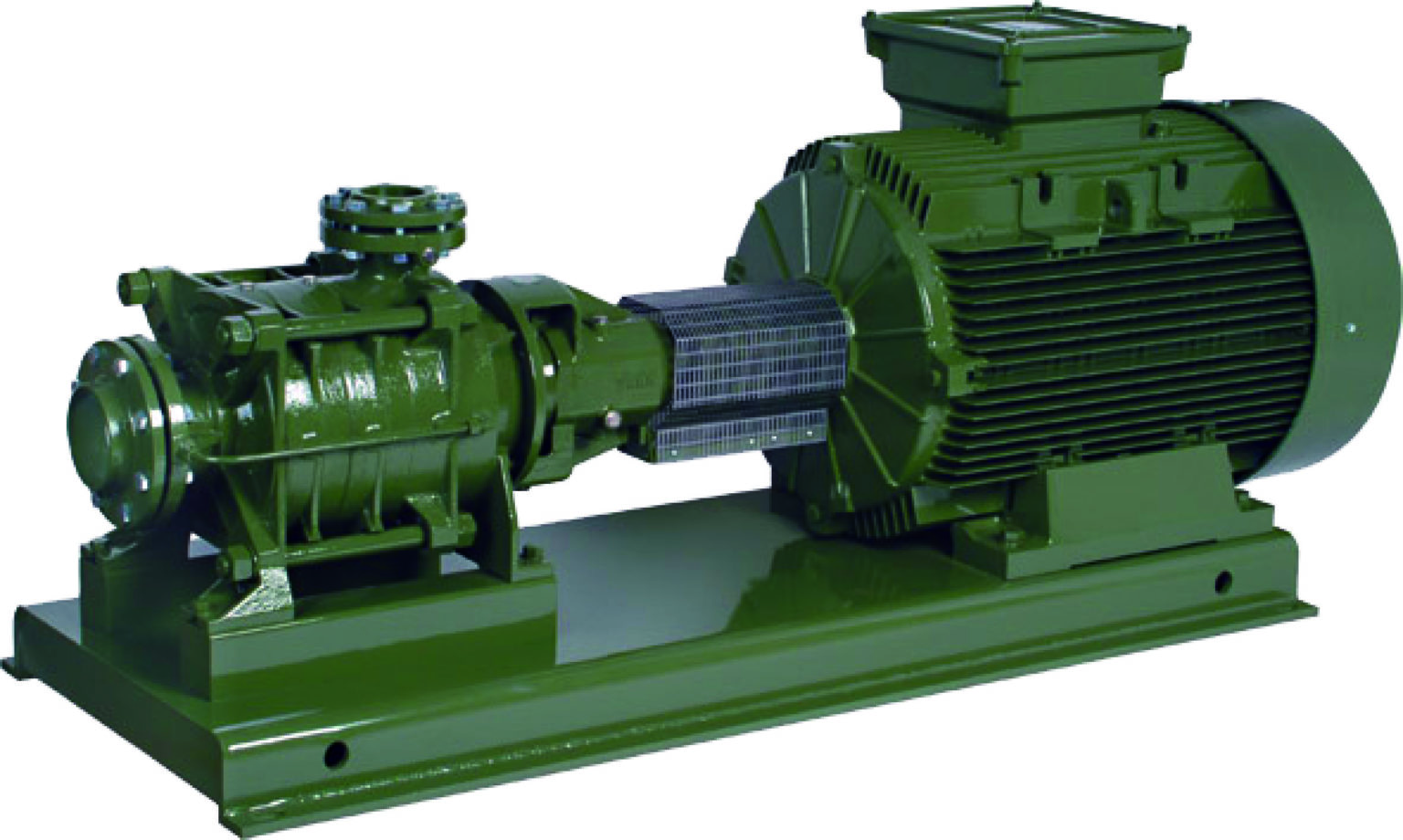

Arrangement: MLH/TM/TMB: Horizontal – MLV/TMV: Vertical
Pump body: Cast Iron
Impeller: Cast Iron
Shaft: Inox Aisi-431
Studs: Carbon Steel
Bushings: Chrome-plated Brass
Mechanical Seal: Graphite/Ceramic/Teflon
Motor Protection: IP 55
Standard Voltage: 3x230V/400V < 4kW | 3x400V – 690V > 4kW
Max. Flow [m³/h]: 850
Max. Height [m]: 670
Maximum Operating Pressure [bar]: 40
Max. Fluid Temperature [ºC]: -15 / +120
Special Versions
Impellers in INOX-316 or bronze
TMX: Fully in INOX-316
Couplings for diesel engines
